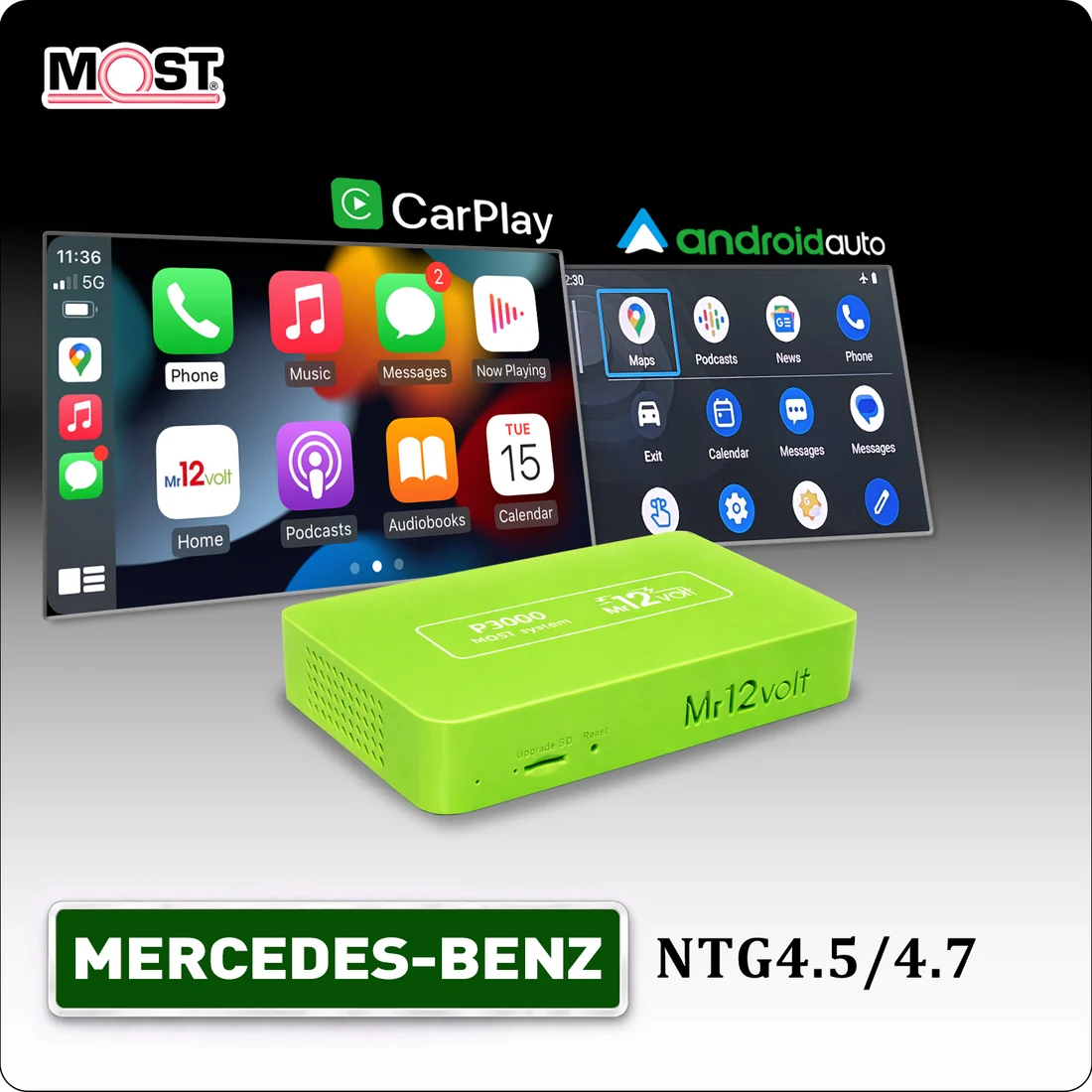

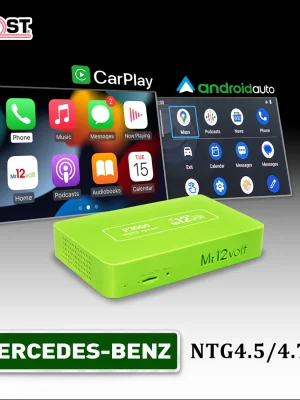

Mercedes NTG 4.5 Apple Carplay Android Auto MOST Fiber module integration

Carplay MMi wirelessly connects your mobile phone to your car, and enables Apple CarPlay, Android Auto, Screen-mirroring, AirPlay, USB Playback. Use Google Maps, Waze, Spotify, YouTube Music and other apps on your car’s original screen!

Suitable for Mercedes models with NTG 4.5/4.7 system:

A-Class W176: 2013 – 2015
B-Class W246: 2013 – 2015
C-Class W204: 2011 – 2015
CLA C117: 2013 – 2015
GLA X156: 2013 – 2015
E-Class W212: 2011 – 2015
E-Class Coupe C207: 2011 – 2015
CLS W218: 2011 – 2015
GLK X204: 2011 – 2015
ML & GL W166: 2012 – 2015
SLK R172: 2011 – 2015
G-Class W463: 2012 – 2015

Wireless Apple Carplay works with all iPhones from iPhone 5s and above running iOS 10 and later.

Wireless Android Auto works with most Android phones, Google and other phones running Android 10 and above.

Original price was: 479.00 €.Current price is: 407.15 €.

Stock left: 1
Order now and will be shipped in 1 working day.

1 in stock (can be backordered)

Frequently ordered together

Mercedes NTG 4.5/4.7 Apple Carplay Android Auto Integration with MOST Fiber optic audio connection.

Mercedes NTG 4.5 Carplay MMi is the highest quality product from MR12Volt, and the only one in the market which uses MOST (optical cable) connection for audio transmission, therefore maintaining unaltered sound quality. This is especially important for cars with the premium audio systems Burmester, Harman/Kardon, etc.

Both Android and Apple phones connect to the device via Wi-Fi and Bluetooth, so USB cable is not necessary.

Mercedes Apple Carplay MMi’s menu is controlled by the original system controls – the rotary knob and switches on the steering wheel in order to retain the original Mercedes driving experience.

Apple Carplay is fully integrated with Mercedes original parking system. It automatically switches to the rear-view camera or parking sensors when reversing and switches off when driving forward.

Mercedes Apple Carplay allows you to connect additional front and rear view cameras, even if the car has not previously been equipped with such features.

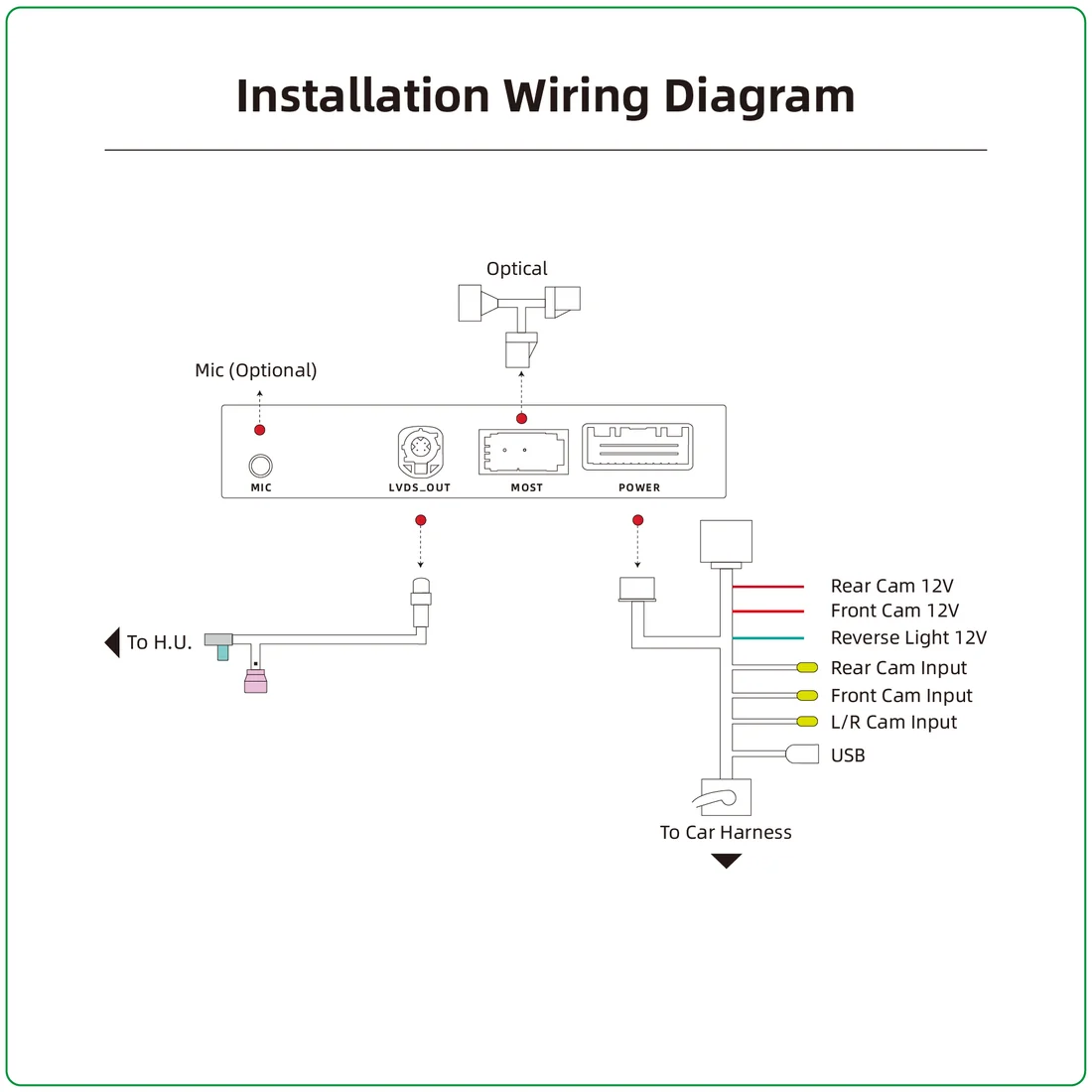

Android Auto Apple Carplay wiring harness connects to the original connectors, eliminating the need to cut and solder wires. The device is fully ready to use and does not require any additional programming to the car.

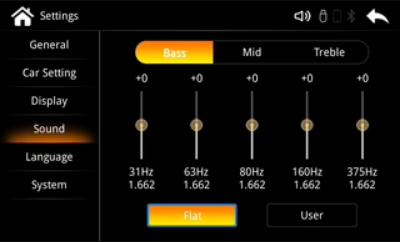

The brand new Apple Carplay integration version has just gotten better now with a built-in highly customizable 15 bar DSP equalizer!

Advantages of Mercedes Apple Carplay MOST module:

  • No need to replace the original multimedia display.
  • The audio is connected via a MOST fiber-optic cable (not via AUX), so best sound quality is maintained.
  • Connection via Wi-Fi and Bluetooth, or USB cable.
  • Original functions are retained – you can return to the original menu at any time.
  • The original display of vehicle cameras or parking sensors is retained.
  • Control by steering wheel, original knob or phone.
  • Voice control using Siri or Google Assistant.
  • USB interface for music or video playback.
  • Sound system equalizer function.
  • Possibility to connect additional front and rear cameras.
  • Tidy installation – no need to cut or solder any wires, everything connects with the original connectors.
  • Publicly available software updates on the manufacturer’s website.
  • CE / ROHS / FCC / ISO9001 certification.
    1 year technical warranty.

Warning! If the car does not have a TV function, the TV function must be activated. There are few easy steps how you can do that.

(Activate only after installing Carplay module)

Press and hold “Return” + “C” Buttons for 8 seconds to activate TV function.



Video how to activate TV function:





Attention! You will not be able to listen to FM radio and use Apple Carplay or Android Auto simultaneously. The system is designed so that when you switch the original picture, the audio channel automatically switches. We suggest you listen to the radio online via the Tune-in app.

Wireless Android Auto works with Android 10 and above mobile devices:

Google: Pixel/XL. Pixel2/2 XL. Pixel 2/3 XL. Pixel 4/4 XL. Nexus 5X. Nexus 6P. Samsung: Galaxy S8/S8+ Galaxy S9/S9+ Galaxy S10/S10+ Galaxy Note 8. Galaxy Note 9. Galaxy Note 10.

Warning: Huawei phones with Android 10 (EMUI10) will only work with USB connection!

Installation video Mercedes SL  R231 NTG4.5

Installation video Mercedes SLK R172 NTG 4.7

Installation video Mercedes E W212 NTG 4.5
