Audi Q2 A5 Q5 VW Passat Skoda Kodiaq Karoq Rear view trunk handle camera

AUDI, SKODA, VW REAR VIEW CAMERA OF THE ORIGINAL LOCATION OF THE BOOT HANDLE

Main features:

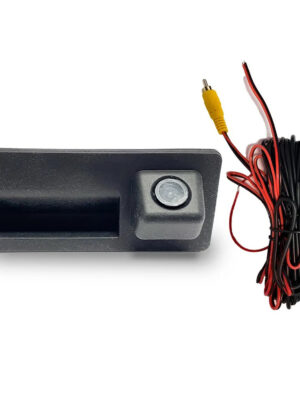

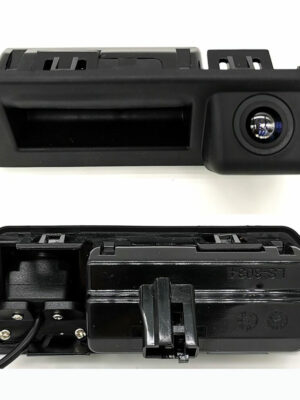

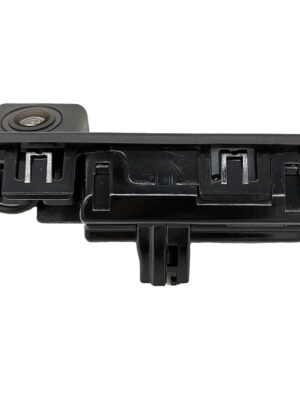

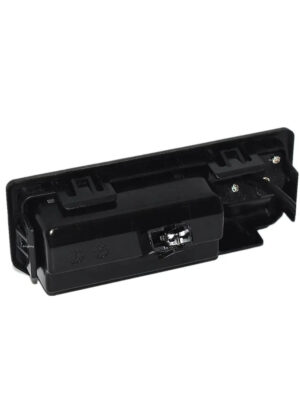

• Rear view parking camera based on the Audi, VW, Skoda boot handle for OEM look.
• Unique design, clear image, night vision, with reference line functions.
• Waterproof, plastic material, combined with a rubber cover.
• Easy installation, enjoy the original look.
• The video signal is transmitted via the supplied video cable to the video module unit or to the Carplay integration module.

*You cannot connect aftermarket camera to vehicle original head unit, there must be connected to video module!*

Also works with modified aftermarket navigation systems (e.g. Pioneer, Sony, Alpine, Kenwood, Android/Carplay screens, etc.)

Compatibility:

Audi Q2 2017-2018;  Audi A5 2017-2018 VW Bora 2018;  VW Skoda KODIAQ 2017-2018; VW Passat 2019.

Specifications:

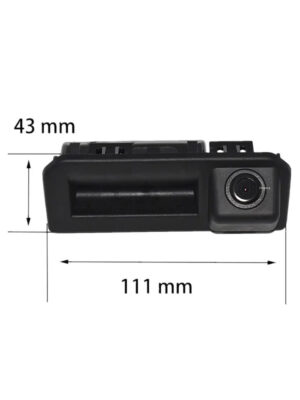

Size: 111mm x 43mm
Camera Cable Length: 0.5m
Camera Extension Cable Length: 6m
Image Sensors: 1/3″ Color Sharp CCD
TV System: NTSC
Resolution: 600TV Lines
Working Power (DCV): 12V
Pixels: 768 x 494
View Angle: 170 degree
Image Sensor: CCD1/3
White Balance: Auto
Water-proof: IP68

How to install:

Remove the boot handle at the back of the car.
Fix the camera where the boot handle was.
To obtain power, connect the power cord of the handle to the cord where the spare boot handle was connected
Connect the camera’s video lead to the video lead extender.
Connect the extender to the car’s camera control unit, Carplay integration, or a modified aftermarket navigation system.
You will see the image when your car is in reverse.
